ATEK gearboxes

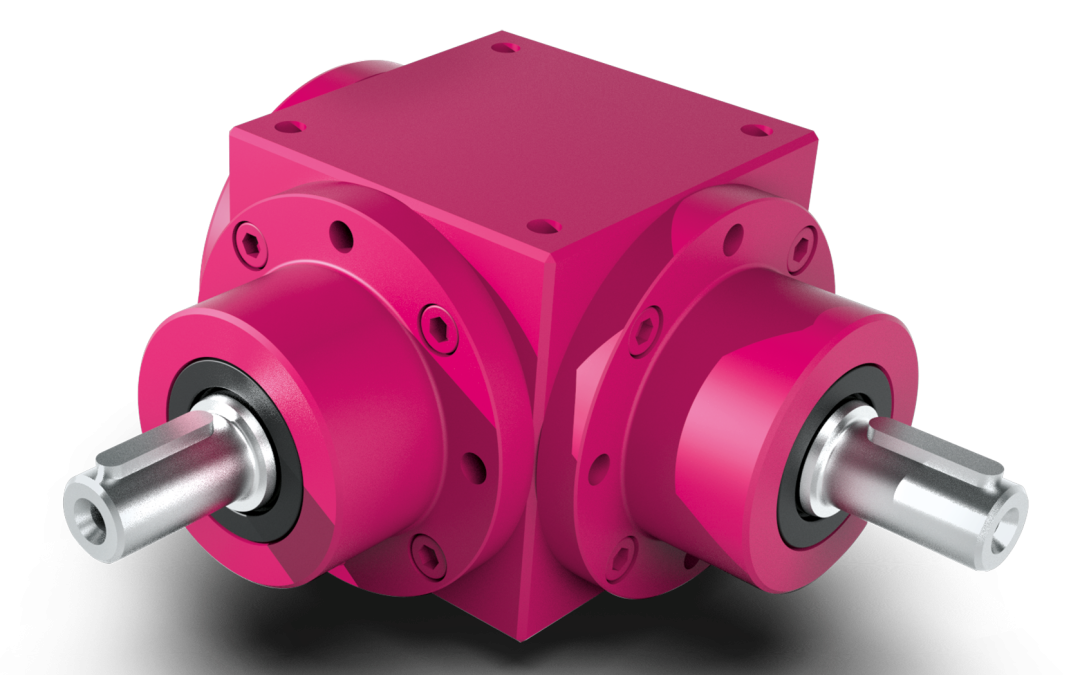

V bevel gearbox
V bevel gear unit, multi-shaft gearbox, in cast iron housing. Small ratios i = 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, 6:1. Maximum output torque 5400 Nm. Maximum input speed 3000 [1/min]. Standard rotational backlash < 30 arcmin, reduced < 6 arcmin. 9 groups of gear sizes from 65 to 350 mm. Optional housing and shafts made of stainless steel 1.4305.
S worm gearbox
Precision worm gear, maintenance-free and insensitive to impacts, shocks, and vibrations. 9 sizes from 40 to 250. Gear ratio range from 5:1 to 83:1. Max torque 13,700 Nm. Max speed 3000 rpm. Backlash < 30 arcmin, reduced < 6 arcmin. Cast iron housing. Gearbox optionally available in splash-proof, dust-proof, anti-corrosion, and explosion-proof versions.
HDV stainless steel bevel gearbox
Stainless steel, multi-shaft precision bevel gear. 4 sizes from 065 to 140 mm. Small gear ratios 1:1 … 6:1. Max. torque 430 Nm. Backlash 30 arcmin, reduced < 10 arcmin. All parts of the multi-shaft bevel gear are made of VA stainless steel. Special oils, lubrication, and seals. NOTOX food-grade grease. Splash-proof, hygienic design.
PCE economical planetary gearbox
The PCE planetary gear unit is an economical version available in four sizes from 40 to 120. Small, lightweight, space-saving, and exceptionally quiet. Maximum input speed: 8,000 rpm. Gear ratios range from 3:1 to 100:1. Straight-tooth gears. Maintenance-free. Includes an adapter for a B5 or B14 standard motor.
BPCE angular planetary gearbox
Economical planetary gearbox with right-angle bevel gear. Includes an adapter and coupling adapted to the servo motor. Small and lightweight design in an aluminum housing. Available in 4 sizes from 40 to 120. Gear ratios from 3:1 to 100:1. Quiet, maintenance-free, lightweight, with low rotational backlash and high torsional stiffness.
LC mini angular gearbox
Mini angular gearbox with adapter and coupling matched to the motor. Small ratios 1:1, 2:1, 3:1, 4:1. Max. torque 16 Nm. Speed max. 3500 [1/min]. 2 sizes 35 and 45mm. Backlash < 10 -30 arcmin. Efficiency 94 – 97%. Lightweight aluminum housing. Small angular gear unit optionally with reduced backlash < 6 arcmin, anodized, splash-proof, dust-proof, anti-corrosion, multi-shaft.
VCE bevel-planetary gearbox with adapter
Combination of a bevel gear unit with a planetary gear unit and an adapter matched to the servo motor. Wide range of gear ratios from 1:1 to 400:1. Selection and technical advice from DEMERO!
VC bevel gearbox with adapter
Right-angle bevel gear unit with an adapter and coupling matched to the servo motor. Low gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, 6:1. Maximum torque 700 Nm. Backlash 20 arcmin, reduced to 6–10 arcmin. 6 sizes from 065 to 200 mm. Maximum speeds 6,000 rpm. Efficiency 94–97%. Housing made of cast iron or stainless steel. Precision multi-shaft gear unit, optionally splash-proof, dust-proof, corrosion-resistant, explosion-proof.
SC worm gearbox with adapter
Worm gearbox with adapter and coupling matched to the servo motor. Ratios 5:1; 7.5:1; 10:1; 13:1; 15:1; 20:1; 26:1 (and > 26 upon request). Max. torque 1100 Nm. 5 sizes from 040 to 100 mm centre distance. Max. speed 6000 [rpm]. Backlash < 20 arcmin, reduced < 3 – 10 arcmin. Cast iron housing. Shock-resistant gearbox. Optionally splash-proof, dust-proof, corrosion-resistant and explosion-proof.
VL bevel gearbox with adapter
VL right-angle bevel gearbox, multi-shaft, with an adapter for an IEC asynchronous electric motor with B5 or B14 flange. Low ratios 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, 6:1. Max. output torque 2,310 Nm. Max. input speed 3000 rpm. 9 size groups from 65 to 260. Standard backlash < 30 arcmin, reduced backlash < 10 arcmin. Cast iron housing. Optionally stainless steel, with NO-TOX grease, ATEX explosion-proof version.
