by | | ATEK gearboxes
V bevel gear unit, multi-shaft V bevel gear unit, multi-shaft gearbox, in cast iron housing. Small ratios i = 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, 6:1. Maximum output torque 5400 Nm. Maximum input speed 3000 [1/min]. Standard rotational backlash < 30 arcmin,...
by | | ATEK gearboxes

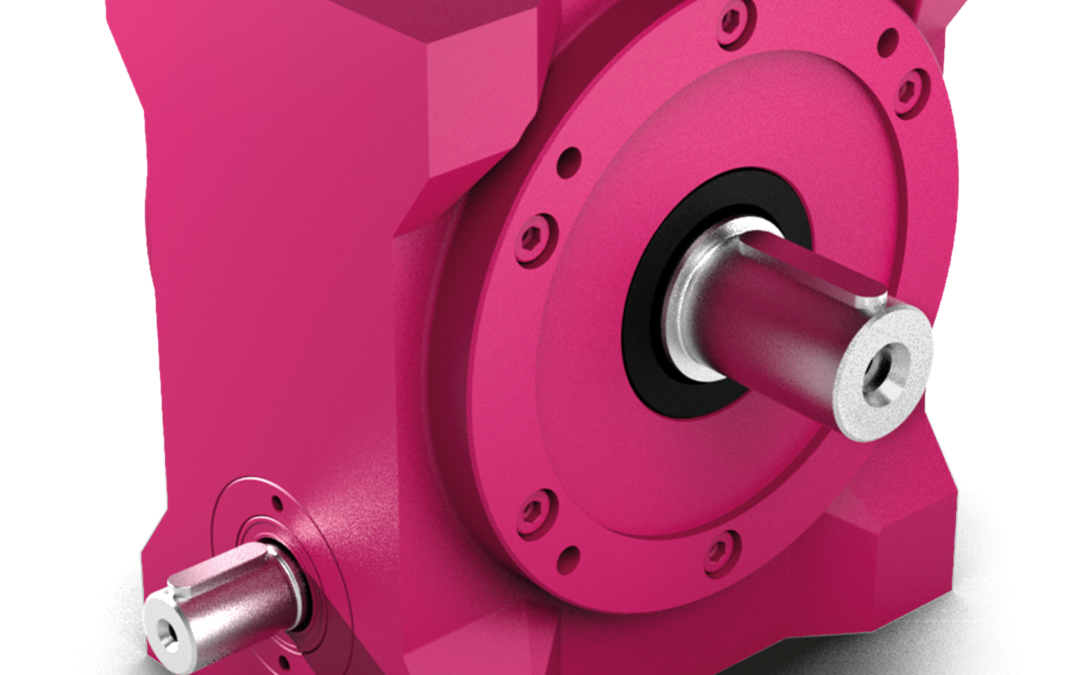

S-type worm gear reducer Precision worm gearbox that is maintenance-free and resistant to impacts, shocks, and vibrations. 9 sizes from 40 to 250. Gear ratios from 5:1 to 83:1. Maximum torque up to 13,700 Nm. Maximum speed 3000 rpm. Rotational backlash <...
by | | ATEK gearboxes

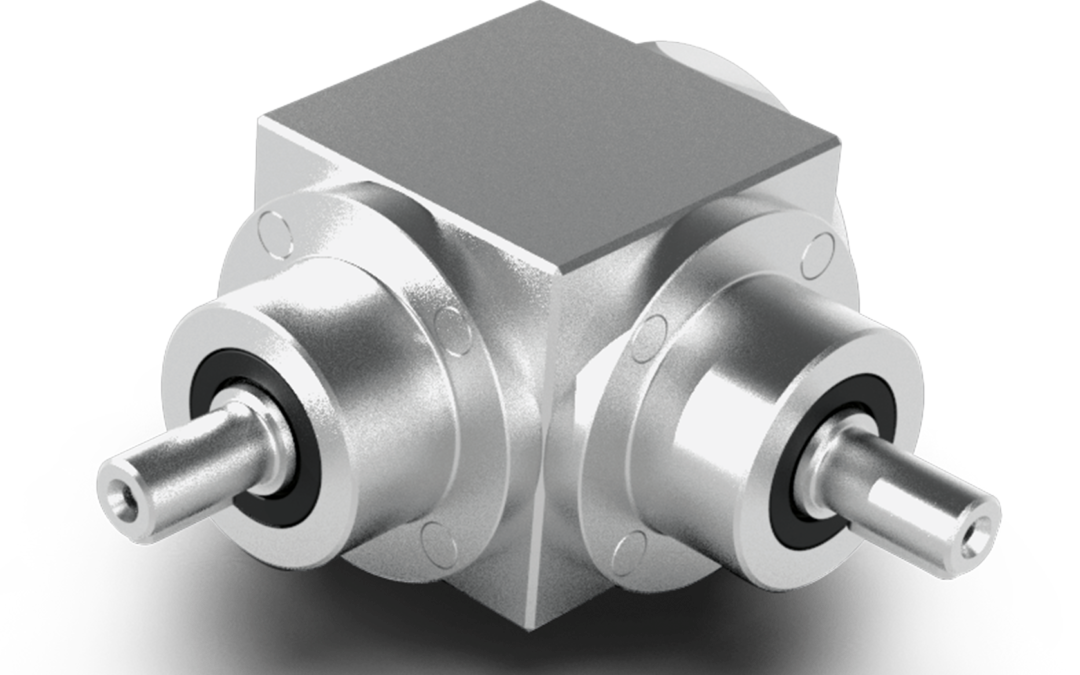

HDV stainless steel bevel gearbox Stainless steel bevel gearbox, multi-shaft, precision. 4 sizes from 065 to 140 mm. Low gear ratios 1:1 to 6:1. Maximum torque up to 430 Nm. Rotational backlash 30 arcmin, reduced < 10 arcmin. All components of the...
by | | ATEK gearboxes
PCE economical planetary gearbox Economical planetary gearbox in 4 size groups from 40 to 120. Small, lightweight, space-saving and exceptionally quiet-running. Input speed up to max. 8,000 rpm. Gear ratios from 3:1 to 100:1. Spur gears. Maintenance-free....
by | | ATEK gearboxes

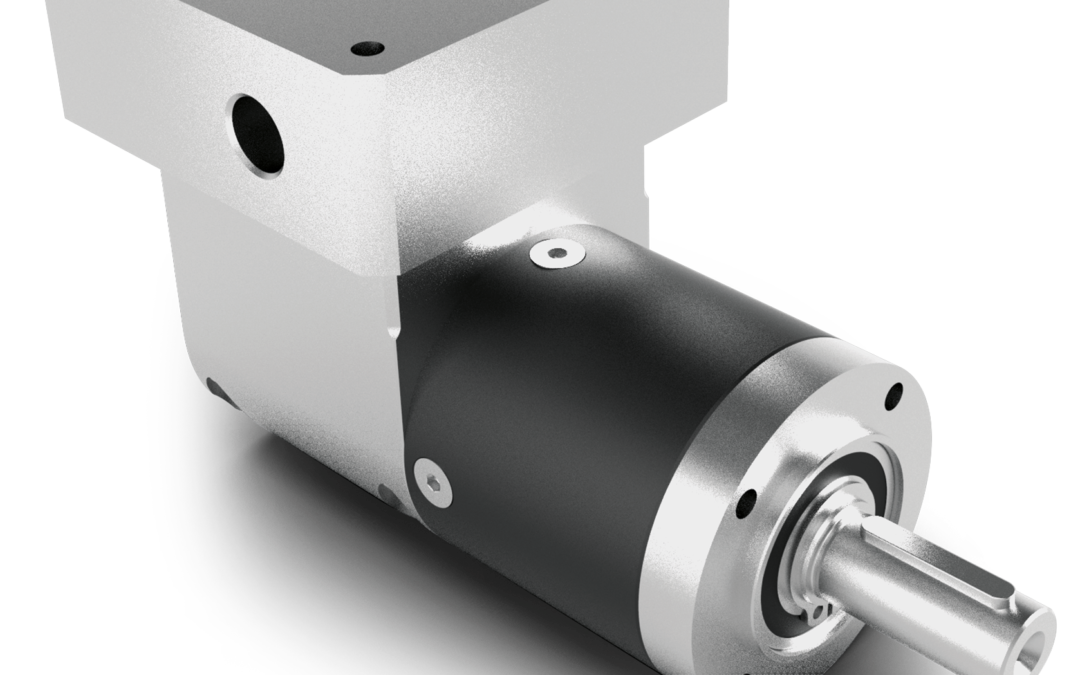

BPCE planetary-bevel gearbox Economical planetary gearbox with an angular bevel gearbox, with adapter and coupling matched to a servo motor. Small and lightweight design in an aluminum housing. 4 size groups from 40 to 120. Gear ratios from 3:1 to 100:1....
by | | ATEK gearboxes
LC mini bevel gearbox with adapter Multi-shaft bevel gearbox LC with adapter and coupling matched to the motor. Low gear ratios 1:1, 2:1, 3:1, 4:1. Maximum torque up to 16 Nm. Maximum speeds 3500 rpm. 2 sizes: 35 and 45 mm. Rotational backlash < 10–30...
